OCV test equipment

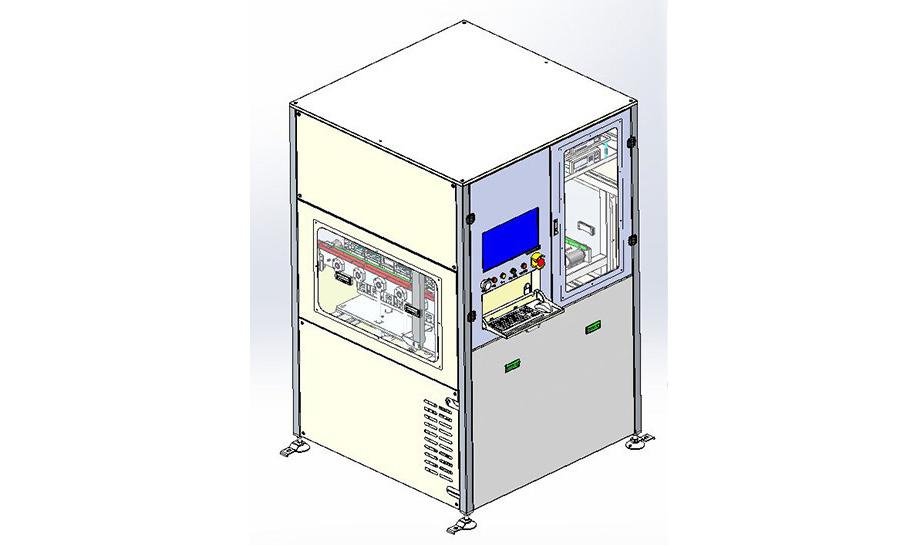

OCV test equipment：It's mainly used for automatic incoming, code scanning, open-circuit voltage measurement, AC internal resistance measurement, case voltage test, and automatic dispatching of lithium batteries. In addition, it also can read MES system information and upload measurement data to the MES system.
|
Main parameters |
Parameter value |
|
|
Single machine capacity |
≥12PPM, customizable |
|
|
Voltage test accuracy |
Voltage range |
0~10V |
|
Test accuracy |
Single instrument ± (0.0035%Set+0.0005%FS) |
|
|
Voltage test accuracy |
Internal resistance range |
0μΩ~3KΩ |
|
Test accuracy |
Single instrument ± (0.5%rdg+10dgt) |
|
|
Test frequency |
1KHZ±0.2HZ |
|
|
Internal resistance repeated test accuracy |
±0.006mΩ |
|
Square cell OCV：Full-automatic loading and dispatching; wide compatible battery range, modular design and convenient changeover; anti-interference design of key mechanisms, subtle eddy current impact; fully automatic in-place calibration in a single machine, good test reproducibility and repeatability.
Pouch cell OCV：Full-automatic loading and dispatching, support single-tray test or customized two-tray test; wide compatible battery range, modular design and convenient changeover; anti-interference design of key mechanisms, super-small eddy current impact; tray-type standard resistance calibration in a single machine, good test reproducibility and repeatability.
Cylindrical cell OCV：Full-automatic loading and dispatching; wide compatible battery range, modular design and convenient changeover; anti-interference design of key mechanisms, subtle eddy current impact; tray-type standard resistance calibration in a single machine, good test reproducibility and repeatability.
